ZDLPF electric fluorine single seat regulating valve 909

關注次數：

Summary

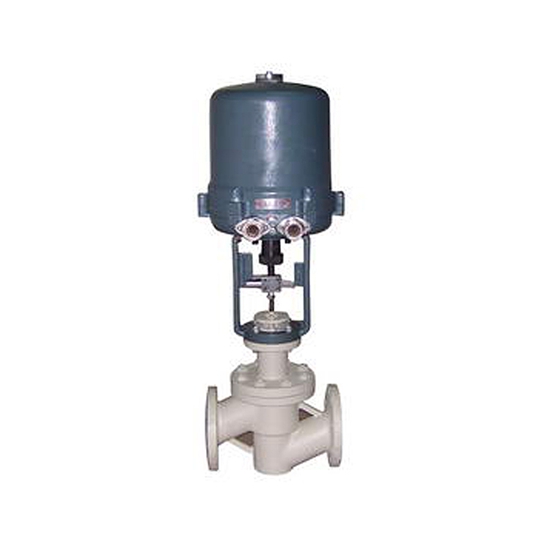

ZDLPF46 type electronic fluorine single seat regulating valve is 381L series electronic actuator and through single seat fluorine lining valve. The actuator uses an integrated electronic controller module, no need of a servo amplifier, and the output force; body wetted parts are high-pressure injection molding process, lined with corrosion resistance, aging resistance of the fluorinated ethylene propylene (F46), and adopts Teflon bellows seal, so that the valve is widely used in chemical, petroleum, metallurgy, medicine, electricity and other industries in acid, alkali and other strong corrosive media and toxic and volatile gas, liquid medium, process control.

Characteristic
Corrosion resistance: the body cavity, valve, valve seat, stem were lining thickness 2.5 ~ 3mm F46, acid, alkali, strong corrosion resistance
Sealing performance: the use and packing double bellows sealed PTFE material, ensure no leakage
A small amount of leakage: because the valve core, the valve seat is soft seal, so leakage is lower than the national standard of the grade

Materials of main parts

Nominal diameter mm		DN15-DN300
Material code		C（WCB）	P（304）	R（316）
The main parts	The valve body, valve cover	WCB（ZG230-450）	ZG1Cr18Ni9Ti（304）	ZG1Cr18Ni12Mo2Ti（316）
	The spool, the valve seat	1Cr18Ni9Ti (304) or titanium alloy surfacing our	1Cr18Ni9Ti (304) or titanium alloy surfacing our	1Cr18Ni12Mo2Ti (316) or titanium alloy surfacing our
	The valve stem	2Cr13	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
	Filler	V polytetrafluoroethylene (F4), flexible graphite, stainless steel bellows
	Shim	Reinforced polytetrafluoroethylene (F4), stainless steel gasket, metal graphite spiral wound gasket
	The push rod, the bushing	2Cr13
Application conditions	Applicable medium	Steam oil gas liquid	Nitrate alkali corrosive gas and liquid	Acetic acid and other corrosive gas and liquid
	At room temperature	-30～+250 F4：≤200℃	-40～+250 F4：≤200℃	-40～+250℃ F4：≤200℃
	High temperature type	-30～+450℃	-40～+500℃	-40～+500℃
	Low temperature type		-40～-60℃、 -60～-100℃

Main technical parameters
Nominal diameter mm 20 25 32 40 50 65 80 100 125 150 200 250 300
The seat diameter mm 20 25 32 40 50 65 80 100 125 150 200 250 300
The rated flow
Coefficient of Kv single seater 5 8 12 20 32 50 80 120 200 280 450 800 1200
seater 10 16 25 40 63 100 160 250 400 630 1000 1600 seater
Rated stroke L (mm) 10 16 25 40 60 100
Actuator model 3810L 381LS-8 381LS-20 381LS-30 381LS-50 381LS-65 381LS-99
PSL PSL201 PSL202 PSL204 PSL208 PSL312 PSL325
Explosion proof type 381LX-20 381LX-30 381LX-50 381LX-65 381LX-99
The power supply voltage of AC220V 50Hz
The signal range of 4 ~ 20mA, 0 ~ DC 10mA DC or 1 to 5V DC 0 - 10V DC
The mode of action of electrical open (K) type, power off type (B type)
When fully open, fully closed, fault self position
The flow characteristics such as the percentage, linear, fast opening
Allowable leakage (L/h) single seat valve: ≤ 10-4 * valve rated capacity; the valve seat: ≤ 10-3 * valve rated capacity
The inherent adjustable ratio R 50:1
Nominal pressure PN (MPa) 1.6 2.5 4 6.4

Ordering instructions
Type and name 1 product 2 nominal diameter DN (3 4 mm nominal pressure flow characteristic of the 5 body material and trim materials
6 medium type and temperature range of 7 valve before and after the pressure (differential pressure) 8 seal form 9 accessories
